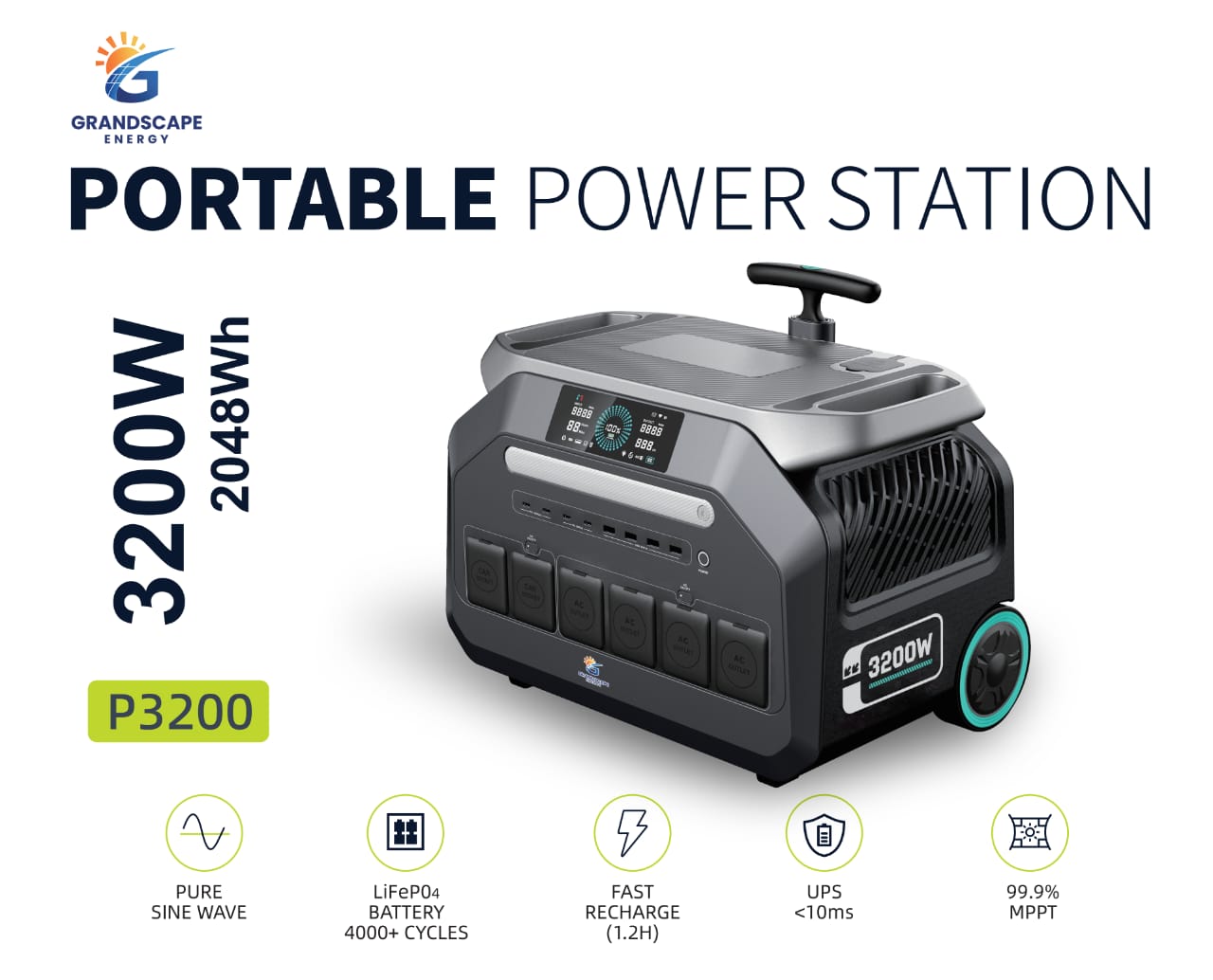

Grand Scape Energy Portable Power Station – P3200

Battery

• Cell Type: LiFePO₄
• Capacity: 2048Wh
• Nominal Voltage: 51.2V
• Voltage Range: 40–60V
• Nominal Charging Current: 50A
• Nominal Discharging Current: 70A
• Max Discharging Current: 90A
• Life Cycles: 4000+

AC Input

• AC Charging Power: 1800W
• Input Voltage:
  • 100/110/120Vac
  • 220/230/240Vac
• Voltage Range:
  • 85–130V
  • 180–260V
• Frequency:
  • 60Hz (100/110/120V)
  • 50Hz (220/230/240V)
• Frequency Range:
  • 55–65Hz
  • 45–55Hz
• Power Factor: >0.99

Solar/DC Input

• Max Car Charging Input: 120W
• Max Solar Charging Input: 1000W
• DC Input Voltage Range: 12–80V
• Max PV Input Current: 16A

AC Output

• Rated Power: 3200W
• Surge Power: 6400W
• Output Current:
  • 32A / 29A / 26.6A (100/110/120V)
  • 14.5A / 13.9A / 13.3A (220/230/240V)
• THD: <1.5%

DC Outputs

• USB-C1/C2: 100W each
• USB-C3/C4: 30W each
• USB-A1/A2/A3/A4: 30W each
• Car Port: 13.2V⎓10A
• DC5525 Ports (x2): 13.2V⎓8A
• Total DC Output: 132W

Efficiency

• Battery → AC: 93–94%
• AC → Battery: 93–94%

General

• Dimensions: 445 × 298 × 371 mm
• Weight: 24.35 kg
• Cooling: Forced Air Cooling
• Operating Temperature:
  • Charging: 0–40°C
  • Discharging: -15–40°C
• Humidity: 0–95%
• Protection: IP20
• Noise: <65dB
• Connectivity: Wi-Fi / Bluetooth
• LED Light: 3W
